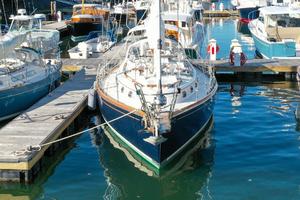

1998 Shannon 43' (13.11 m) 43 Cutter
Harpswell, Maine, United States
Starshine
STARSHINE HAS BEEN DONATED TO MAINE MARITIME ACADEMY AND OFFERED FOR CHARTER WITH OPTION TO PURCHASE ---------------------------------------------------------------------------------------------- "The Shannon 43 is beautiful, bullet proof and meticulously designed. An instant classic, this i
Flag of Registry: United States
- Cruisers
- Sail
- Used
- Diesel
- Fiberglass Hull
- HIN/IMO: NHN43044A898
Description
STARSHINE HAS BEEN DONATED TO MAINE MARITIME ACADEMY
AND OFFERED FOR CHARTER WITH OPTION TO PURCHASE
----------------------------------------------------------------------------------------------
"The Shannon 43 is beautiful, bullet proof and meticulously designed. An instant classic, this is the boat you want to sail across the seven seas before venturing to the world's remote anchorages." By David Liscio for Sailing
Starshine is a fantastic example of this proven, well-respected design and beautifully built yacht. With a new paint job scheduled for Winter/Spring of 2023 you can take advantage of putting your own touches on the boat by choosing the color. This boat is in above average shape and should survey well.
Specifications
HIN/IMO: NHN43044A898
Official Number: 1069736
LOA: 47' 6'' (14.48 Meters)
Type: Sail- Used
Year: 1998
Beam: 13' 6''
LOD: 43'
Draft Max: 9' 4''
Draft Min: 4' 10''
Heads: 1
Fuel Type: Diesel
Hull Material: Fiberglass
Fuel Tank: 98 Gallons (370.97 Liters)
Fresh Water: 200 Gallons (757.08 Liters)
Holding Tank: 20 Gallons (75.71 Liters)
Displacement: 33000
Photos click to view all
Multimedia
Engines
Engine 1
- Engine Make: Yanmar
- Engine Model: 4JH2 HTE
- Engine Year: 1998
- Engine Type: Inboard
- Drive Type: Direct
- Power HP: 75.00
- Power KW: 55.93
- Fuel Type: Diesel
- Hours: 8768.00
- Engine Location: Middle
Full Details
Shannon 43 Cutter - Vessel Details
Construction
"Top-quality methods are used to build Shannon boats and this 43-footer is no exception. The one-piece hull is hand laid up composite fiberglass with a linear PVC foam core. No balsa wood is used. The sandwich construction is completed with vinylester resin and biaxial laminates. The lead ballast is encapsulated in the hull, eliminating the need for keel bolts that could be damaged in a grounding.
The mast is stepped to the keel for strength. The hull-to-deck joint has an internal flange upon which the deck is laid and affixed with polyurethane, then through-bolted with stainless fittings accessible from below deck. There is no over abundance of teak on deck because it can add unwanted weight." ~ David Liscio review for Sailing

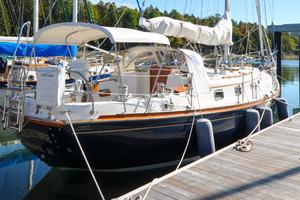

Hull
- Vanished teak rubrail with stainless steel bullnose chafe guard outboard port, starboard and aft
- Dark blue Awlgrip topsides ~ scheduled to be repainted 2023
- Gold cove stripe
- White boot stripe
- Green antifouled bottom

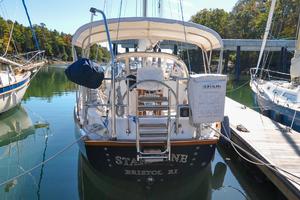

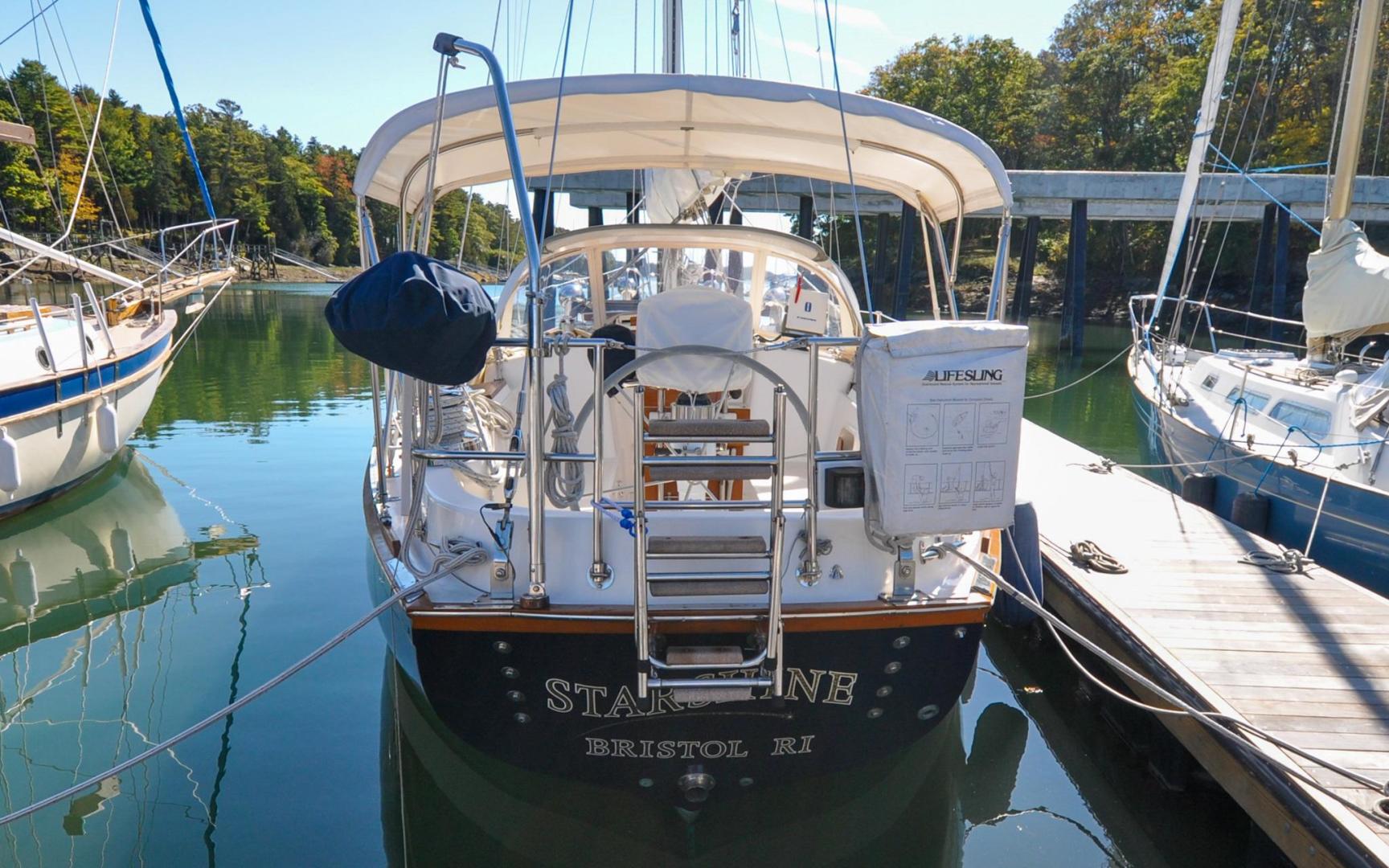

- Stainless steel wet exhaust pipe on transom
- Stainless steel bifold swim ladder with teak treads
Deck Equipment
Starshines decks feature:
- Stainless steel tubular pushpit
- Lifesling on pushpit
- Stainless steel outboard hoist on pushpit
- BBQ grill on pushpit with Sunbrella cover on pushpit
- Outboard motor mount on pushpit
- Stainless steel stanchions with side gates port and starboard and aft
- Double plastic-coated wire lifelines, single lifeline at gates
- Stainless steel tubular pulpit
- Vanished teak toe rail port and starboard
- (2) Stainless steel stern cleats
- (2) Stainless steel midships cleats with stainless steel chocks
- (2) Stainless steel bow cleats with stainless steel chocks
- Deep diamond textured gelcoat decks

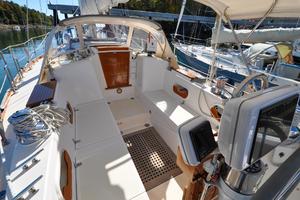

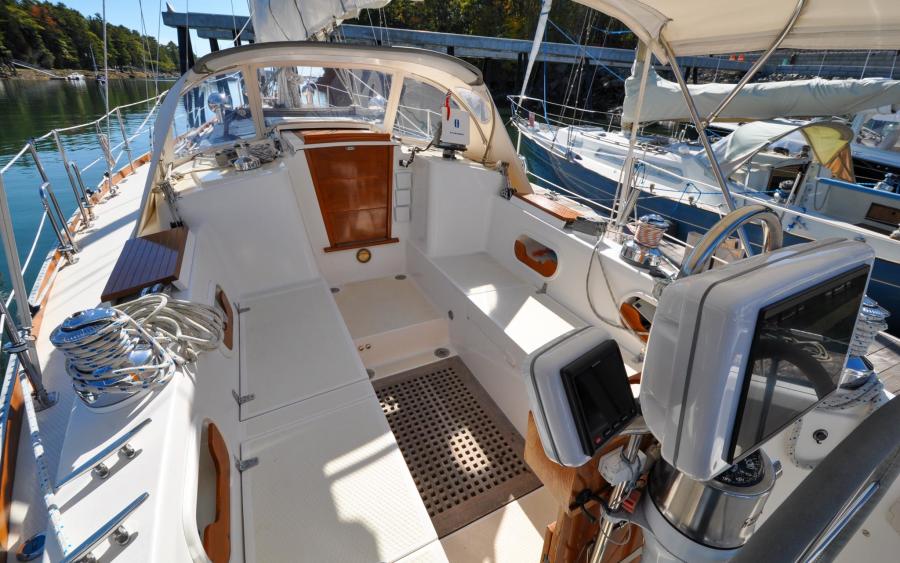

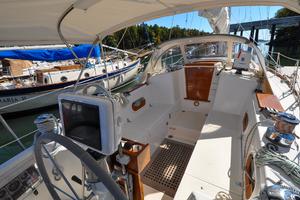

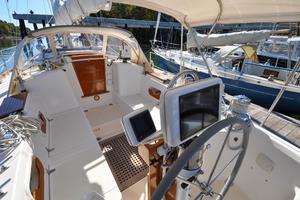

Cockpit:
"Along with seaworthiness, performance and safety, another important concern in boat design is comfort. A substantial amount of drafting and prototype time was expended to create the optimum cockpit layout for all Shannons... The angle of the seat back and the width of the seat become critical considerations after a few hours sailing. Shannon cockpits have seats long enough to stretch out and lie down on, and the space between the seats is close enough that even petite ladies can brace themselves when the boat is heeled. Cockpit seats that are too short for sleeping preclude a rest in the cockpit, whether for an afternoon nap when anchored or while underway at night between turns at the helm.
Shannon cockpits are also designed for easy movement getting from behind the wheel to go forward. The primary winches, instruments, and engine panel are positioned for access and visibility from the helm so it is not necessary to constantly move to see instruments or tend sails. Shannon cockpits are secure and dry places that are deep enough to keep you comfortably surrounded by high coamings that keep water out. Because it is critical that the cockpit drain quickly, especially when filled by breaking waves in storm conditions, there are four 1 1/2" scuppers in the cockpit.
Another example of Shannon's emphasis on offshore safety is the provision for the mainsail halyard and reefing lines to be led aft to the cockpit. In extreme conditions, the crew does not have to leave the security of the cockpit to reduce sail. Another safety feature of the cockpit design is that it permits the use of a full-length emergency tiller installed directly onto the rudder post that can be used while comfortably seated. On other designs, emergency tillers are often too short and located in such awkward locations that they are very difficult to use for more than a few minutes." Shannon Brochure
- Stainless steel tubular bimini frame with off white bimini
- Stainless steel tubular dodger frame with elk skin covered handrail aft and off-white dodger with Eisenglass clear panels
- Varnished teak caps over cockpit combing forward
- Suite of electronics (See Electronics)
- Stainless steel tubular binnacle
- (2) NavPod GRP pods on binnacle
- Elk Skin covered stainless steel helm
- Ritchie Powerdamp ships compass on binnacle
- Stainless steel throttle lever on binnacle
- Stainless steel transmission lever on binnacle
- Double teak cup holder with binocular holder forward on binnacle
- Double leaf teak fold down cockpit table
- Yanmar engine panel
- (2) Stainless steel cleat on cockpit combing port and starboard
- (2) Cockpit cubbies port and starboard under combing
- Painted framed deck hatch port of companionway on coachroof
- Stainless steel cleat port and starboard of companionway on coachroof
- White cockpit seat cushions with blue piping
- High volume manual bilge pump
- Cockpit speakers port and starboard
- Teak cockpit grate on sole
Weather Decks
- Genoa track on toe rail port and starboard
- Infills and pump-out deck fittings
- Stainless steel chainplates port and starboard
Coachroof
- Painted frame forward opening deck hatches port and starboard aft of traveler
- Main sheet traveler on arch over companionway hatch turtle
- (2) Varnished teak handrails port and starboard
- (2) Molded fiberglass dorade boxes with chrome cowl vents port and starboard
- Stainless steel cowl guards over front to dorade vents
- (3) Teak framed forward opening deck hatches
- (6) Turning block bundle to starboard (3 upper/3 lower)
- (4) Turning block bundle to port (2 upper/2 lower)
- Varnished teak brow port and starboard on coachroof house above ports
- (6) Stainless steel port lights port and starboard on coach roof house

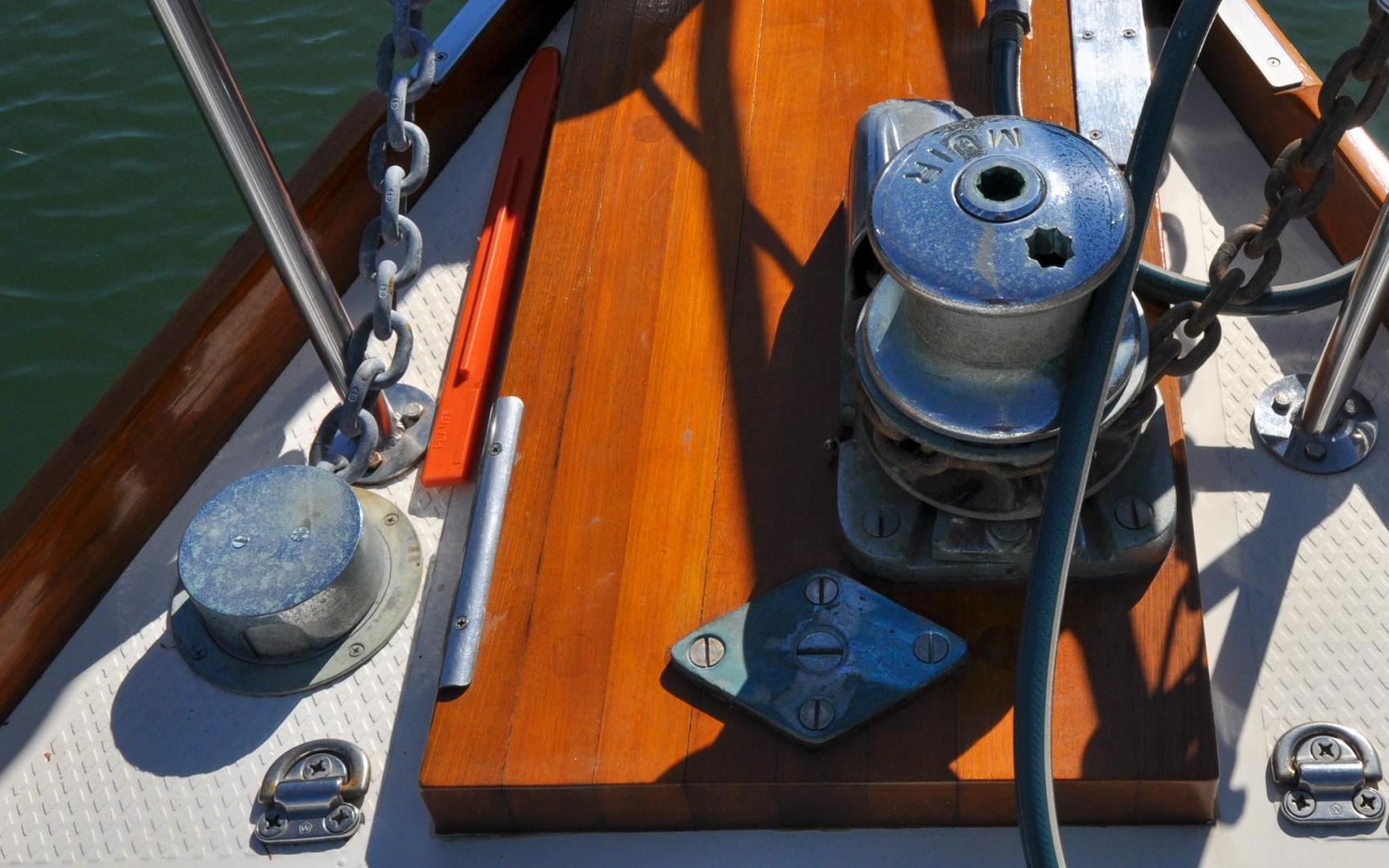

Foredeck
- Varnished teal bow sprint
- Stainless steel chafe plates on sprit
- Muir electric vertical windlass with up/down foot switches
- Stainless steel tiedown D-rings port and starboard
- Anchor chain haws pipe with cap
- Washdown system for anchor and foredeck
- Double anchor bow rollers
Rigging
Rigging refit in 2015
Standing Rigging
- Painted aluminum mast
- Painted aluminum boom with lazy jacks
- Line and block controlled boom vang
- Double aluminum blade type spreaders
- Stainless steel stays
- Stainless steel rod shrouds
- Stainless steel open barrel design turnbuckles
- Stainless steel chainplates
Running Rigging - All running rigging lines are lead back to the cockpit
- Harken single line foresail furler with aluminum furling foil over forestay
- Harken single line staysail furler with an aluminum furling foil over the inner forestay
- Colored yacht braid halyards

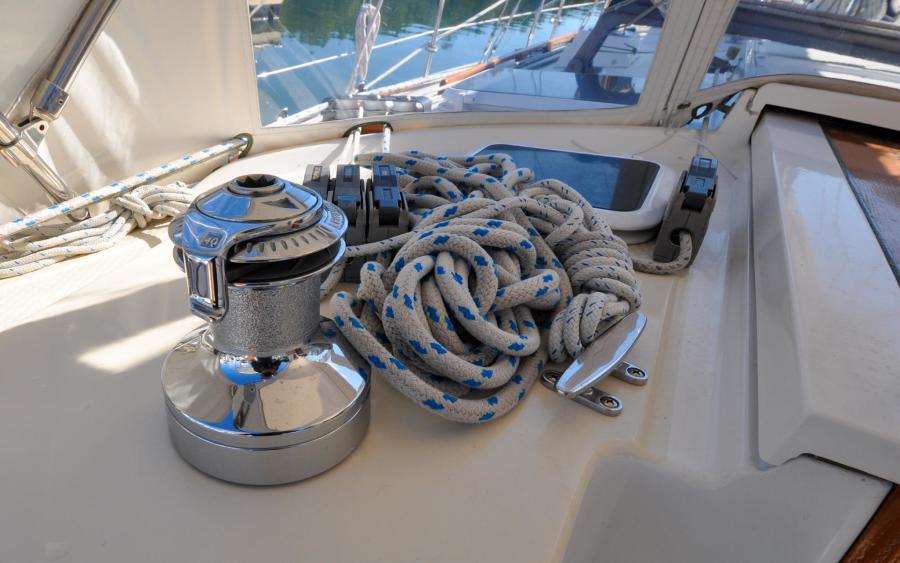

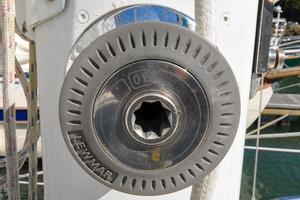

Winches
- (2) Lewmar 64 two speed self-tailing primary winches on cockpit combing
- Lewmar 50 two speed self-tailing electric halyard/reef winches starboard on cockpit combing
- Lewmar 50 two speed self-tailing spinnaker/sheet winches port on cockpit combing
- Lewmar 40 two speed self-tailing vang/outhaul/topping lift winch port of companionway on coachroof
- (2) Lewmar 30 winch on mast

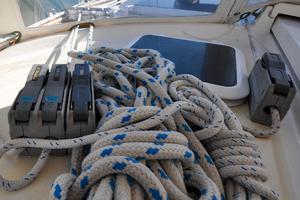

Clutches
- Triple line clutch to starboard forward of electric winch on combing
- Double line clutch to port forward of trim winch on combing
- Single main traveler line clutches port and starboard of companionway on coachroof
- Triple line clutch port of companionway on coachroof
Sail Inventory
- Mainsail
- Stay sail
- Genoa
- Yankee
Electronics
Cockpit
- B&G Network Wind display
- B&G Network Speed display
- B&G Network Depth display
- Furuno monochrom multifunction display (backup)
Helm Station

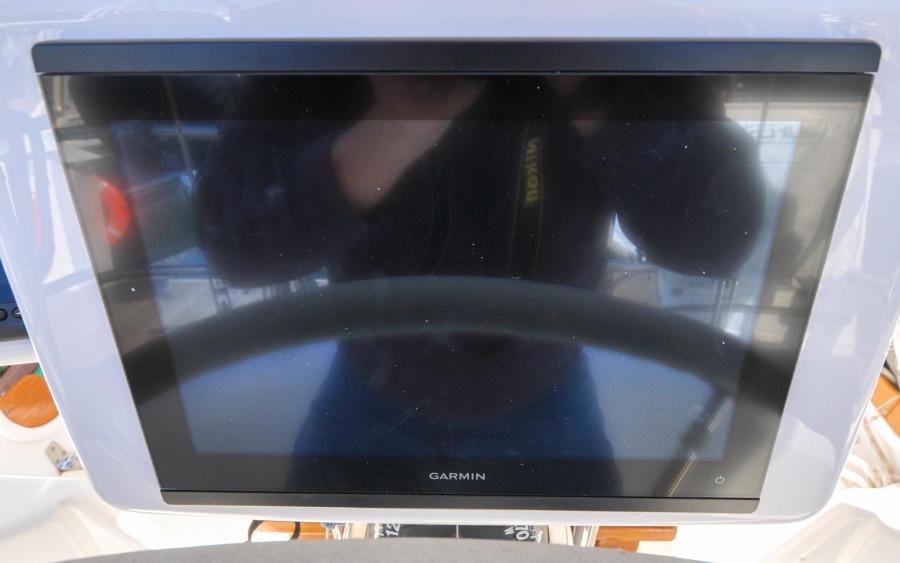

- Garmin GPSMap 1246 12" IPS touch multifunction display ~ 2022
- Garmin autopilot controls/display ~ 2022
Mast
- Furuno closed array radar dome
Navigation Station
- Standard Horizon Matrix AIS GX2100 marine VHF
Interior Accommodations
The interior of Starshine is clean, bright, and elegant. The Herreshoff style interior offsets the oiled teak furniture and trim. Her solid teak and holly cabin sole, accentuated by the bright white grooved overhead liner gives the cabins and open and airy feal without losing the charm of the quality wood furniture.

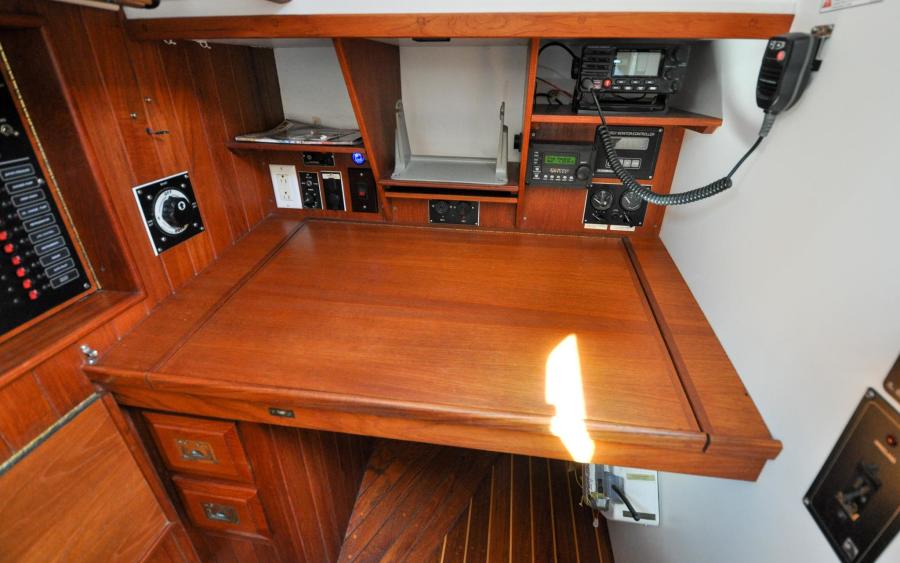

Steeping through the companionway into the interior, off to starboard and aft of the galley, is the aft facing navigation station. The conveniently located navigation station with its large desktop (60” x 30”) and custom swivel seat offers a well thought out space for navigation or as an onboard office. Other features include:
- Opening portlight
- Overhead lighting
- Suite of electronics (See Electronics)
- Top loading navigation desk
- Drawer storage below desktop
- Large storage locker outboard and forward of desktop
- Electrical distribution panel (See Electrical Systems)
- Battery switch (See Electrical Systems)
- Electrical meters (See Electrical Systems)
- Tank Gauges (See Tankage Systems)
- 110/120 Volt GFI outlets
Moving forward on the starboard side is the U-shaped galley with top loading and side loading refrigerated ice box, great storage, central location to the cockpit and salon and very good counter space. Also of note:
- Overhead dome lighting
- Handrail overhead
- Opening portlight
- 12-Volt fan
- (3) Double slatted door storage cabinets outboard and above counters
- Top and front-loading ice box with (2) Seafrost coldplates
- Propane sniffer (See Safety Equipment)
- Force 10 stove with 3-burner cooktop
- Top loading storage outboard and forward
- Double sink
- Fresh water hot/cold pressurized mixer head with single lever control
- Manual freshwater tap
- Drawer and locker storage below and inboard of sinks

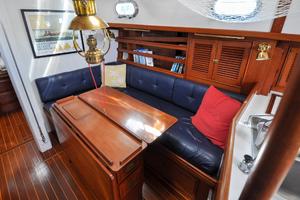

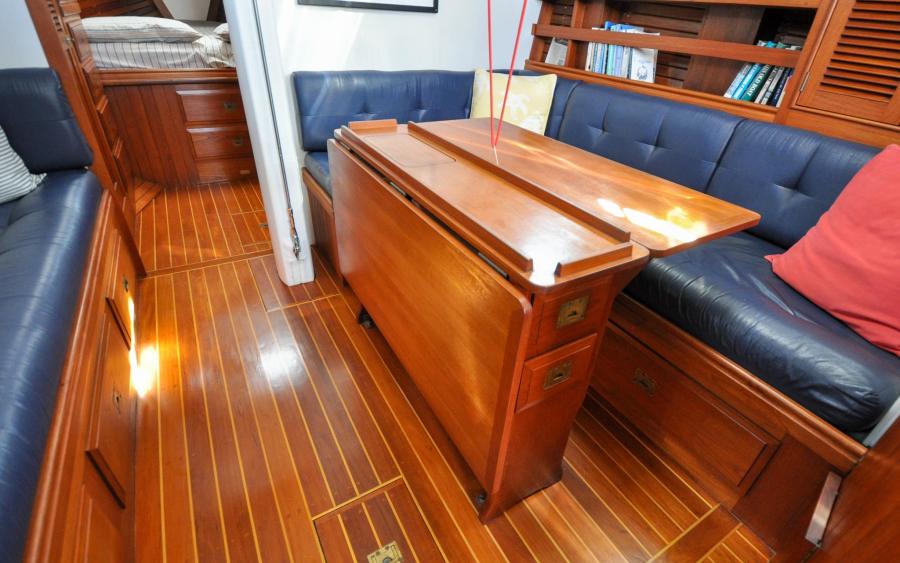

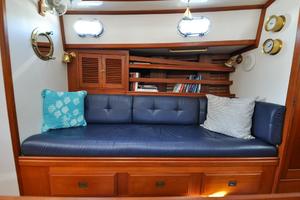

Just forward of the galley and head compartment is the large well-lit main salon with seating for up to 8 guests on the L-shaped settee to starboard and the bench style settee to port. The double leaf salon table with internal storage is easy to get around when the leaves are down. And then offers an enormous table that bridges both settees with the leaves up. Some other key features of the salon are:
- Overhead deck hatch port and starboard
- (3) Overhead dome lights port and starboard
- Handrail overhead, starboard
- 12-Volt fan to port
- (2) Portlights port and starboard and on center
- Kerosene lamp over table
- Ships barometer
- Ships clock
- Lighting under soffits port and starboard
- (2) Reading lights port and starboard
- Locker and shelf storage above settees and outboard port and starboard
- Pioneer CD radio receiver
- Bose speakers port and starboard
- Magnavox TV
- Blue upholstered bottom and back cushion for settees
The forward cabin located forward of the salon offers great storage with an abundance of overhead natural lighting. The cabin also features
- Overhead hatch
- Overhead dome lighting port and starboard
- Overhead handrails port and starboard
- (2) Portlights port and starboard
- 12 Volt fan outboard to starboard
- Locker and cubby storage outboard above berth port and starboard
- Chain locker access
- (3) 3-foot-tall storage lockers with slatted door tops (2 to starboard and 1 to port)
- Credenza with mirrored locker/medicine cabinet above counter and 4-drawer below counter
- Reading lights port and starboard
- (2) Storage drawers below bunk
Turning aft and heading back through the salon, opposite the galley is the head. With her separate stall shower and sitting just to port of the companionway steps this also doubles as a great place to hang wet fold weather gear before heading to the galley, salon, cabins or navigation station. This area is also equipped with:
Head
- Overhead opening hatch
- Dome light overhead
- Large mirror
- Built in teak towel rack
- Raritan manual mine head
- (2) Locker storage with slatted doors outboard and above sink
- 110/120 Volt GFI outlet
- Single basin sink with freshwater hot/cold pressurized mixing tap
- Manual fresh water tap with foot pump
- Corian counters
- (2) Locker storage with slatted doors below counter
Stall Shower
- Overhead dome light
- Freshwater hot/cold pressurized shower wand with mount and flexible hose
- Locker storage with slatted door outboard
- Bench seat
- Single lever controls for pressurized hot/cold fresh water to shower wand
- Grate over sump
Continuing aft on the port side is the aft cabin that features:
- Overhead dome lighting
- 12-Volt fan
- Opening portlight
- Reading light forward and outboard
- Shelf storage outboard and above bunk
- Locker storage with slatted top door aft of the bunk
- Storage below bunk
The engine room which is located directly under the companionway stairs.
Final notes about accommodations: First, ventilation below is excellent with 12 bronze opening ports, 5 skylight hatches, 4 cowl vents on baffled dorade boxes and (4) 12 volt electric fans. Second, there are numerous well-placed handholds throughout the cabin for safety while below.
- 6’ 4” Headroom throughout
- Navigation station with built in swivel chair
- Solid teak everywhere
- Beautiful bright white headliner throughout
- Overhead lights and reading lamps are bronze
Electrical System
12 Volt DC System
- Marinetics 12 volt DC distribution panel
- DC Battery condition meter on distribution panel
- DC load current (Amp) meter on distribution panel
- Optima Blue Top engine cranking battery
- (4) Lifeline group 31 (125 AH each) house batteries ~ 2022
- Blue Sea System rotary battery switch
- Ample Power energy monitor/controller digital battery monitor
- Magnum 2500 watt inverter/charger ~ 2016
- Promariner Promatic 50-3 back-up charger
- Alternator
120 Volt AC System
- 30 Amp - 120 volt system
- Marine grade 30 amp shore power cord
- Marinetics 120 volt AC distribution panel
- AC voltage meter on distribution panel
- AC load current (Amp) meter on distribution panel
Mechanical System
- Yanmar 4JH2 HTE 75 HP turbo engine
- Fresh water/heat exchanger engine cooling system
- Primary RACOR 500FG fuel / water separator filter
- Engine mounted secondary filter
- Reverso oil change system
- Engine grounded conductor cable
- Fiberglass wet muffler
- Sea Recovery water maker
Tankage Systems
Diesel
- (2) 28 Gallon aluminum tanks
- (1) 42 Gallon aluminum tank
- Fuel manifold
- Analog fuel gauge
Fresh Water
- (2) 50 Gallon aluminum tanks
- (1) 100 Gallon aluminum tank
- Accumulator tank
- (2) Shurflo 12 volt fresh water pumps
- Manual fresh water foot pump
- (3) Fresh water valves
- Seaward 6 gallon water heater
Black Water
- (1) 20 Gallon polyethylene holding tank
- Tank Watch level monitor system
Propane
- (2) Aluminum tanks with overflow protection devices
- Firebox Xintex S-2A propane/CNG fume detector
Recent Upgrades/Work
2022
- New Autopilot
- New Chartplotter
2021
- Teak Refurbish
2019
- Added Garboard Plug
2018
- New Prop Shaft
2015
- New 145 Genoa
- Rigging refit
2012
- New Inverter/ Charger
2011
- Refit Dodger & Bimini
2006
- 60# CQR
- 150 HT chain
Safety Systems
- LifeSling rescue system device with a tether line
- Handheld air horn
- Whale Gulper 220 manual bilge pump
- Super Max with 50 feet of 3/8" BB chain and 200 feet of rode
- 60 Pound CQR with 150 feet of 3/8" BB chain and 100 feet of rode
Represented by a Certified Professional Yacht Broker (CPYB)
A Certified Professional Yacht Broker (CPYB) is recognized as having achieved the highest level of industry accreditation, available only to fully-qualified yacht sales professionals. The CPYB program is administered by Yacht Brokers Association of America in partnership with Florida Yacht Brokers Association, Northwest Yacht Brokers Association, California Yacht Brokers Association, Boating Ontario Dealers, British Columbia Yacht Brokers Association and Gulf Coast Yacht Brokers Association.
The CPYB program is also endorsed by the Marine Retailers Association of the Americas (MRAA) Marine Industry Certified Dealership (MICD) program and leading yacht manufacturers as a key component of their own industry standards; the highest level of achievement for their member yacht sales professionals.
Experience & Validity
The CPYB designation is earned by eligible yacht sales professionals, who, after serving a minimum of three years as a full-time professional, have successfully completed a comprehensive written examination to validate professional competency.
Continuing Education
A CPYB is committed to their personal and professional development through continuing education, as mandated for CPYB recertification every three years.
Ethics & Standards
A CPYB adheres to, and is accountable to, a nationally recognized Code of Business Ethics and conducts yacht sales transactions in accordance with a stringent set of industry standards of practice.
Fiduciary Responsibility
A CPYB maintains a dedicated escrow/trust account to protect their client’s funds. A CPYB understands their fiduciary responsibility and obligations with respect to client funds.
Transaction Management
A CPYB uses proven, industry-recognized transaction documents, which fully and clearly describe all terms and conditions of a transaction.
Honesty & Integrity
A CPYB maintains the highest standards of professionalism, acting with honesty and integrity.
Trust & Confidence
A CPYB instills confidence, trust and consistency in all transactions involving fellow yacht sales professionals for the benefit of the client.
Disclaimer
The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.
Contact Us
Want more information?
Scott Woodruff, CPYB
Yacht Broker, CPYB
44 Bay View Street
Camden ME 04843 United States
Office: 207-236-8656
Direct: 954-701-1072
Cell: 954-701-1072
Email: swoodruff@ecys.com
Scott makes his passion his career. Growing up in a sailing family, Scott was on yachts from an early age cruising Block Island Sound as well as the Maine Coast. Upon entering college, he started racing and was introduced to dinghy sailing where he honed his skills. After college Scott joined the Living Classroom Foundation in Baltimore originally as a volunteer and then as an employee where he taught sailing to inner city youth, assisted with their boat building program and met his wife of 22 years, Alex.
Returning to Maine in 1998, Scott started his professional career in the yachting industry by taking a job with Sun Yachts in Camden, Maine as a Sales Agent. From Camden, Maine Scott worked his way up through the ranks as he moved to Portland, Maine as the Crewed Yacht Supervisor for Stardust. Then on to Tortola in the British Virgin Islands for 7 Years as the Caribbean Yacht Sales Manager for Sunsail. He then moved to Ft Lauderdale, Florida to take on the position of Global Sales Manager for Leopard Catamarans for 7 years. In 2014 Scott returned home again with his family and joined East Coast Yacht Sales taking over the Camden Office and then opening a second office in Belfast, ME.
Scott knows the yachting industry. Having represented and worked with many of the industry leading manufacturers, traveling globally to work with factories on build projects, and working with many of the industry’s leading designers, Scott is well positioned to help buyers and sellers navigate the buying/selling process.
